AP Biology Extension: Plant Physiology & Hydroponics
Table of Contents:
- Introduction to Hydroponics (Soil-less Cultivation)
- Historical Background (The Science of Solution Culture)
- The Role of Essential Minerals (Macro vs Micro)
- How Hydroponics Works: The Science of Osmosis & Nutrient Uptake
- Types of Hydroponic Systems (NFT, DWC, Aeroponics)
- Advantages for Sustainable Agriculture (Ecological Impact)
- Check Your Understanding: Unit 2 Practice Questions
- Data Analysis: Interpreting Graphs
- Advanced Thinking: Critical Application Questions

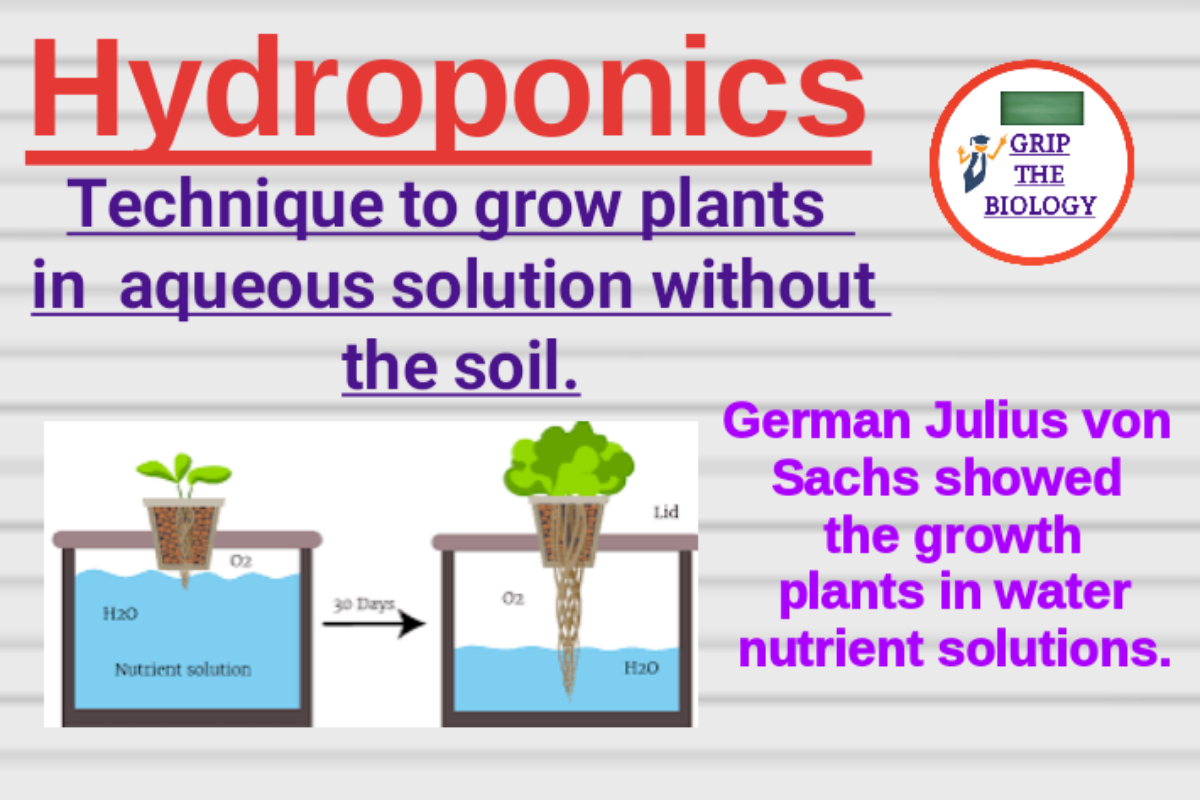

- Hydroponics is a specialized branch of hydroculture that involves growing plants—specifically crops—without the use of traditional soil. Instead of extracting nutrients from the earth, plants are grown in a mineral-rich, water-based nutrient solution.
- The term is derived from two Greek words: 'Hydros' (meaning water) and 'Ponos' (meaning labor). Essentially, it is "water-working" to deliver everything a plant needs directly to its root system.
How is it possible to grow plants without soil?
- Soil is a reservoir of nutrients for plants . Plants absorb all essential nutrients from the soils through the roots.
- The essentiality of nutrients for the growth of plants is essential. Moreover soil is essential for the growth.
- All living organisms require both organic and inorganic nutrients for their growth and development.
- The plant's roots are either submerged in, or misted with, a precisely balanced nutrient solution.
 |
Soil vs. Hydroponics |
- Physical support is provided by inert growing media such as Perlite, Rockwool, or Expanded Clay.
- Because the nutrients are delivered directly to the roots, the plant spends less energy searching for food and more energy on biomass production and growth.
- Most of the minerals present in soil can enter plants through roots. Some plant species accumulate selenium like Barley, Wheat etc and some plants like Alfalfa absorb gold, while some plants can be seen near nuclear test sites to take up the radioactive strontium.
- There are several examples of hydroponics including the hanging gardens of Babylon and the floating gardens of China and Aztec Mexico.
- In 1600, Von Helmont demonstrated that a shoot of plant was grown in the soil for five years while providing Water at regular intervals.
- He observed that when a plant attained full growth, its weight was more than the consumption of the soil. It indicated that plants consume more water than the soil.
- In the 1960, German scientist Julius von Sachs experimented with growing plants in water-nutrient solutions.
- He demonstrated that plants could be grown to maturity in a defined nutrient solution in complete absence of soil.
- The technique of growing plants in a nutrient solution without the soil is known as hydroponics.
- Hydroponics has been successfully employed as a technique for the commercial production of vegetables such as tomato, seedless cucumber and lettuce
The Role of Essential Minerals (Macro vs Micro)
- Essential Nutrients are further divided into two broad categories based on their quantitative requirements
- The nutrients that are generally present in plant tissues in large amounts called Macronutrients.
- The macronutrients include carbon, hydrogen, oxygen, nitrogen, phosphorus, sulphur, potassium, calcium and magnesium.
- The nutrients that are present in traces and are needed in very small amounts by plants called micronutrients.
| Essential Element | Form Absorbed | Biological Function (AP Biology Context) |
|---|---|---|
| Nitrogen (N) | NO₃⁻, NH₄⁺ | Component of proteins, nucleic acids, and chlorophyll. |
| Phosphorus (P) | H₂PO₄⁻, HPO₄²⁻ | Key part of ATP, phospholipids, and DNA/RNA backbone. |
| Magnesium (Mg) | Mg²⁺ | Central atom of the Chlorophyll molecule; enzyme activator. |
| Potassium (K) | K⁺ | Osmotic balance and stomatal opening/closing. |
| Iron (Fe) | Fe²⁺, Fe³⁺ | Essential for Electron Transport Chain (ETC) in photosynthesis. |
- Micronutrients include iron, manganese, copper, molybdenum, zinc, boron, chlorine and nickel.
- Besides the Macro and micronutrients, there are some other elements such as sodium, silicon, cobalt and selenium that are also needed by the plants as Essential nutrients or Elements.
- Essential elements can be divided into following broad categories on the basis of their functions.
- Essential elements that are needed to be components of biomolecules. So they are termed as structural elements Example- carbon, hydrogen, oxygen and nitrogen.
- Some essential elements are required for formation of energy elements in plants. Example- Magnesium in chlorophyll.
- Those essential elements that activate or inhibit the activity of enzymes are called activator or inhibitor .
- For example- Mg2+ is an activator for both ribulose bisphosphate carboxylase oxygenase and phosphoenol pyruvate carboxylase, both of which are critical enzymes in photosynthetic carbon fixation.
- Some essential elements can alter the osmotic potential of a cell. For example- potassium plays an important role in the opening and closing of stomata.
💡 Related study To understand the Stomata: Structure, Function, and Mechanism of Opening and Closing (AP Biology Guide)
How Hydroponics Works: The Science of Osmosis & Nutrient Uptake
- To understand how a plant thrives without soil, we must look at the cellular level. In a hydroponic system, the plant doesn't just "drink" water; it selectively absorbs minerals through complex biological processes.
The Role of Osmosis and Water Potential
- In hydroponics, water movement is governed by Osmosis.
- Water moves from an area of higher water potential to an area of lower water potential.
- The nutrient solution is carefully calibrated to be hypotonic or slightly isotonic relative to the plant's root cells. This ensures that water naturally flows into the roots via osmosis, maintaining turgor pressure—the internal pressure that keeps the plant upright.
Active Transport: Defying the Gradient
- While water enters through osmosis, minerals (like K+, NO3-, and Mg 2+often exist in higher concentrations inside the root cells than in the water outside.
- To pull these nutrients in, the plant uses Active Transport.
- Specialized proteins in the root cell membranes (Proton Pumps) use ATP to pump ions into the cell against their concentration gradient. This is why oxygen is critical in hydroponics—it powers the cellular respiration needed to create this ATP.
The Importance of pH and Ion Availability
- The "Science" of hydroponics relies heavily on pH balance.
- If the solution becomes too acidic or too alkaline, nutrients become "locked out" and the plant cannot absorb them, even if they are present in the water.
- Most hydroponic plants prefer a pH range of 5.5 to 6.5 for optimal ion exchange.
Root Aeration: The Secret Ingredient
- Unlike soil, which has natural air pockets, water can quickly become depleted of oxygen.
- Hydroponic systems use air stones or falling water to increase Dissolved Oxygen (DO).
- Without oxygen, roots cannot perform the respiration required for active transport, leading to "root rot" and nutrient deficiency.
💡 Related study To understand the Diffusion Pressure Deficit (DPD) vs. Osmotic Pressure (OP) and Turgor Pressure (TP)
Types of Hydroponic Systems (NFT, DWC, Aeroponics) :
- While all hydroponic systems deliver nutrients via water, the method of delivery varies. Each system has its own mechanical and biological advantages.
Nutrient Film Technique (NFT)
- In an NFT system, a very shallow stream (a "film") of water containing all the dissolved nutrients is recirculated past the bare roots of plants.
- Plants are placed in long, slightly tilted channels. Gravity pulls the water down the slope, bathing the tips of the roots.
- This system provides a constant supply of both water and oxygen because the top part of the roots remains dry and exposed to air.
 |
| Natural film Technique of Hydroponics |
Deep Water Culture (DWC)
- DWC is the most straightforward method. The roots of the plants are suspended in a reservoir of nutrient-rich water.
- Mechanism: The plant is held in a "net pot" filled with clay pebbles. An Air Stone (connected to an air pump) bubbles oxygen into the water.
- Biological Context: Without the air stone, the roots would literally drown because they cannot perform cellular respiration in stagnant, oxygen-poor water.
 |
| Deep water culture technique of Hydroponics |
Aeroponics: The High-Tech Approach
- In Aeroponics plants are grown with their roots suspended in a closed chamber, where they are periodically misted with a nutrient solution.
- Mechanism: High-pressure nozzles turn the nutrient water into a fine mist (fog).
|
| System Type | Complexity | Best For | Main Advantage |
|---|---|---|---|
| NFT (Nutrient Film) | Medium | Leafy Greens (Lettuce, Herbs) | Constant nutrient flow & high oxygen. |
| DWC (Deep Water) | Low | Larger plants (Tomatoes, Peppers) | Simple to maintain & hard to mess up. |
| Aeroponics | High | Research & Space Science | Maximum Oxygenation & fast growth. |
| Ebb & Flow | Medium | Almost anything Versatile) | Robust root support & oxygen cycles. |
- Hydroponics is not just a trend; it is a vital solution for global food security and environmental conservation. By removing soil from the equation, we solve several ecological problems.
Extreme Water Conservation
- The most significant advantage is water efficiency.
- The Science: In traditional farming, much of the water is lost to soil runoff or deep percolation.
- The Hydroponic Edge: Hydroponic systems are "closed-loop," meaning water is recirculated. It uses up to 90% less water than traditional soil-based agriculture. This is crucial for drought-prone regions.
Elimination of Chemical Runoff
- Traditional agriculture often leads to Eutrophication (excessive nutrients in water bodies).
- The Issue: Fertilizers from soil leach into rivers and lakes, causing algal blooms that kill aquatic life.
- The Hydroponic Edge: Since the nutrient solution is contained within a reservoir, there is zero runoff. This protects our natural water ecosystems.
Reduced Need for Pesticides & Herbicides
- The Issue: Soil is a breeding ground for many pests, fungi, and weeds.
- The Hydroponic Edge: Growing in a controlled, soil-less environment significantly reduces the risk of soil-borne diseases. This leads to cleaner, chemical-free produce and healthier soil elsewhere.
Land Efficiency & Vertical Farming
- The Issue: Expanding farmland often leads to Deforestation.
- The Hydroponic Edge: Hydroponic systems can be stacked vertically (Vertical Farming).
- This allows us to grow more food in smaller urban spaces, reducing the need to clear forests for agriculture.
Zero Soil Erosion
- The Issue: Modern farming often leads to the depletion of topsoil, which takes centuries to form.
- The Hydroponic Edge: By not using soil, we give the earth's topsoil a chance to recover and regenerate, preventing land degradation.
📝 Test Paper 1: Plant Physiology & Hydroponics
Total Marks: 40 | Time: 1.5 Hours
Section A: Multiple Choice Questions (8 Marks)
Q1. Which of the following best explains why roots in a Deep Water Culture (DWC) system require an air stone?
A) To provide CO_2 for the process of photosynthesis in the roots.B) To deliver oxygen for cellular respiration to produce ATP.
C) To increase the water potential of the nutrient solution.
D) To prevent the plants from absorbing too much water via osmosis.
Q2. If the nutrient solution in a hydroponic setup becomes hypertonic relative to the root cells, what is the most likely outcome?
A) The roots will take in more water to balance the concentration.B) The plant will experience plasmolysis and lose turgor pressure.
C) The rate of active transport will increase significantly.
D) The stomata will stay open to increase transpiration pull.
A) To allow gravity to facilitate the flow of the nutrient film.
B) To ensure the roots are completely submerged at all times.
C) To increase the surface area for CO_2 absorption.
D) To mimic the natural slope of soil-based farms.
A) Nitrogen. B) Magnesium
C) Phosphorus D) Potassium
A) Ebb and Flow
B) Deep Water Culture
C) Aeroponics
D) Drip System
Q6. How does the 'Closed-Loop' nature of hydroponics help prevent Eutrophication?
A) It filters out all toxins from the water naturally.
B) It prevents nutrient-rich runoff from entering local waterways.
C) It uses only organic nutrients that don't affect algae.D) It increases the temperature of the water to kill algae.
Q7. The uptake of NO3- (Nitrate) ions into root cells against a concentration gradient is an example of:
A) Simple DiffusionB) Facilitated Diffusion
C) Active Transport
D) Bulk Flow
A) Light Intensity
B) Solution pH
C) Ambient Humidity
D) Container Color
Section B: Short Answer Questions (12 Marks - 3 Marks each)
Q. 1 Define the term 'Hydroponics' based on its Greek roots.
Q2. Which specific part of the plant cell is responsible for the 'Active Transport' of mineral ions in a soil-less medium?
Q3. Why is an 'Inert Medium' (like Perlite or Clay pebbles) used in hydroponics if it doesn't provide any nutrients.
Q4. What is the ideal pH range for most hydroponic nutrient solutions to ensure maximum mineral availability?
Section C: Long Answer Questions (20 Marks - 10 Marks each)
1. Compare and contrast the role of soil in traditional agriculture with the role of the "Growing Medium" in a hydroponic system. Is the medium biologically necessary for nutrient uptake?
2. Explain the biological necessity of an aeration system (like an air stone) in a Deep Water Culture (DWC) setup. What would happen to the rate of Active Transport if the oxygen levels dropped significantly?
🚀 Join the Community! Get access to FREE Worksheets, PDF Notes, and discuss Lessons with
📝 Test Paper 2 : Plant Physiology & Hydroponics
Total Marks: 40 | Time: 1.5 Hours
Section A: Multiple Choice Questions (8 Marks)
1. What is the primary benefit of hydroponics in plant cultivation?
A) Increased water usage
B) Improved soil quality
C) Enhanced nutrient control
D) Reduced plant growth
2. Which type of hydroponic system uses a continuous flow of nutrient-rich solution?
A) NFT (Nutrient Film Technique)
B) DWC (Deep Water Culture)
C) Ebb and Flow
D) Drip Irrigation
3. What is the purpose of aeration in hydroponics?
A) To increase water temperature
B) To reduce nutrient levels
C) To increase oxygen levels
D) To decrease plant growth
4. Which hydroponic system is best suited for large-scale commercial production?
A) NFT (Nutrient Film Technique)
B) DWC (Deep Water Culture)
C) Ebb and Flow
D) Drip Irrigation
5. What is the main disadvantage of hydroponics?
A) High initial investment
B) Limited crop selection
C) Increased water usage
D) Reduced plant growth
6. Which nutrient is essential for plant growth and is often a limiting factor in hydroponics?
A) Nitrogen
B) Phosphorus
C) Potassium
D) All of the above
7. What is the term for the pH level of the nutrient solution in hydroponics?
A) pH balance
B) Nutrient balance
C) Water balance
D) EC (Electrical Conductivity)
8. Which hydroponic system uses a timer to control the flow of nutrient solution?
A) Ebb and Flow
B) NFT (Nutrient Film Technique)
C) DWC (Deep Water Culture)
D) Drip Irrigation
Section B: Short Answer Questions (12 Marks - 3 Marks each)
1. What are the primary benefits of using hydroponics in plant cultivation?
2. Describe the main components of a basic hydroponic system. ?
3. How does pH level affect plant growth in hydroponics?
4. What is the purpose of aeration in hydroponic systems?
Section C: Long Answer Questions (20 Marks - 10 Marks each)
Q1. A hydroponic grower notices that their plants are wilting even though the roots are submerged in water. Upon testing, they find the nutrient solution is extremely concentrated (hypertonic). Use the concept of Water Potential to explain this phenomenon.
Q 2. Discuss two ways in which hydroponic farming contributes to Environmental Sustainability compared to traditional open-field farming, specifically focusing on nutrient runoff and land use.
📝 Data Analysis and interpreting graph questions :
Question 1 : The graph below shows the effect of different nutrient concentrations on plant growth in a hydroponic system.
| Nutrient Concentration (ppm) | Plant Height (cm) |
|---|---|
| 100 | 10 |
| 200 | 15 |
| 300 | 20 |
| 400 | 25 |
| 500 | 20 |
| 600 | 15 |
1. What is the optimal nutrient concentration for plant growth?
2. What happens to plant growth when nutrient concentration exceeds 400 ppm?
3. What is the likely cause of decreased plant growth at high nutrient concentrations?
2. Plant growth decreases when nutrient concentration exceeds 400 ppm.
3. The likely cause of decreased plant growth at high nutrient concentrations is nutrient toxicity or salt buildup, which can be detrimental to plant growth.
Question: The graph below shows the effect of pH levels on nutrient uptake in a hydroponic system.
| pH Level | Nitrogen Uptake (%) | Phosphorus Uptake (%) |
|---|---|---|
| 5.0 | 60 | 40 |
| 5.5 | 80 | 60 |
| 6.0 | 90 | 80 |
| 6.5 | 80 | 70 |
| 7.0 | 60 | 50 |
Interpret the data and answer the following questions:
2. How does phosphorus uptake change when pH level increases from 6.0 to 7.0?
3. What is the likely cause of decreased nutrient uptake at high pH levels?
1. The optimal pH range for nitrogen uptake is around 6.0, where uptake is maximum (90%).
2. Phosphorus uptake decreases from 80% to 50% when pH level increases from 6.0 to 7.0.
3. The likely cause of decreased nutrient uptake at high pH levels is nutrient precipitation or reduced availability
🚀 Agla Kadam (Next Steps)
Biology ki taiyari ko aur mazboot banayein!
Comments
Post a Comment
