Root Nodule Formation: Molecular Signaling and Symbiotic Nitrogen Fixation for AP Biology
- Introduction to Symbiotic Nitrogen Fixation
- The Role of Rhizobium and Frankia
- Stages of Root Nodule Formation (Step-by-Step) :
- Chemical Signaling (Flavonoids and Nod factors) ,
- Root Hair Curling and Infection Thread Formation
- Cortex Invasion and Bacteroid Development
- The Biochemistry of Nitrogen Fixation
- Structure and Function of Nitrogenase Enzyme
- Role of Leg-haemoglobin (The Oxygen Scavenger)
- Fate of Ammonia: Ammonia Assimilation in Plants
- Check Your Understanding: Unit 2 Practice Questions
- Advanced Thinking: Critical Questions
- Data Analysis: Interpreting Graphs
- Symbiotic Nitrogen Fixation is a sophisticated biological partnership between specific plants (Legumes like Soybeans, Peas, and Alfalfa) and specialized soil bacteria called Rhizobia.
- Unlike free-living nitrogen fixers, these organisms create a unique "biological home" called a Nodule to carry out the heavy lifting of nitrogen metabolism.
- Mutualism or symbiotic is an interaction between the two species in which , both species are benefitted to each other .
- The Plant (The Host) provides a steady supply of carbohydrates (energy from photosynthesis) and a protected, low-oxygen environment within the root nodules.
- The Bacteria (The Guest) Converts atmospheric N2 into ammonia (NH3), which the plant can readily assimilate into amino acids and proteins.
- The plant roots secrete specific polyphenolic compounds as a chemical signal called Flavonoids into the soil.
- Rhizobia perceive these Chemicals signals and respond by producing Nod factors , which trigger the plant to begin nodule development.
- Biological nitrogen fixation is an anaerobic process. However, the plant roots need oxygen for respiration.

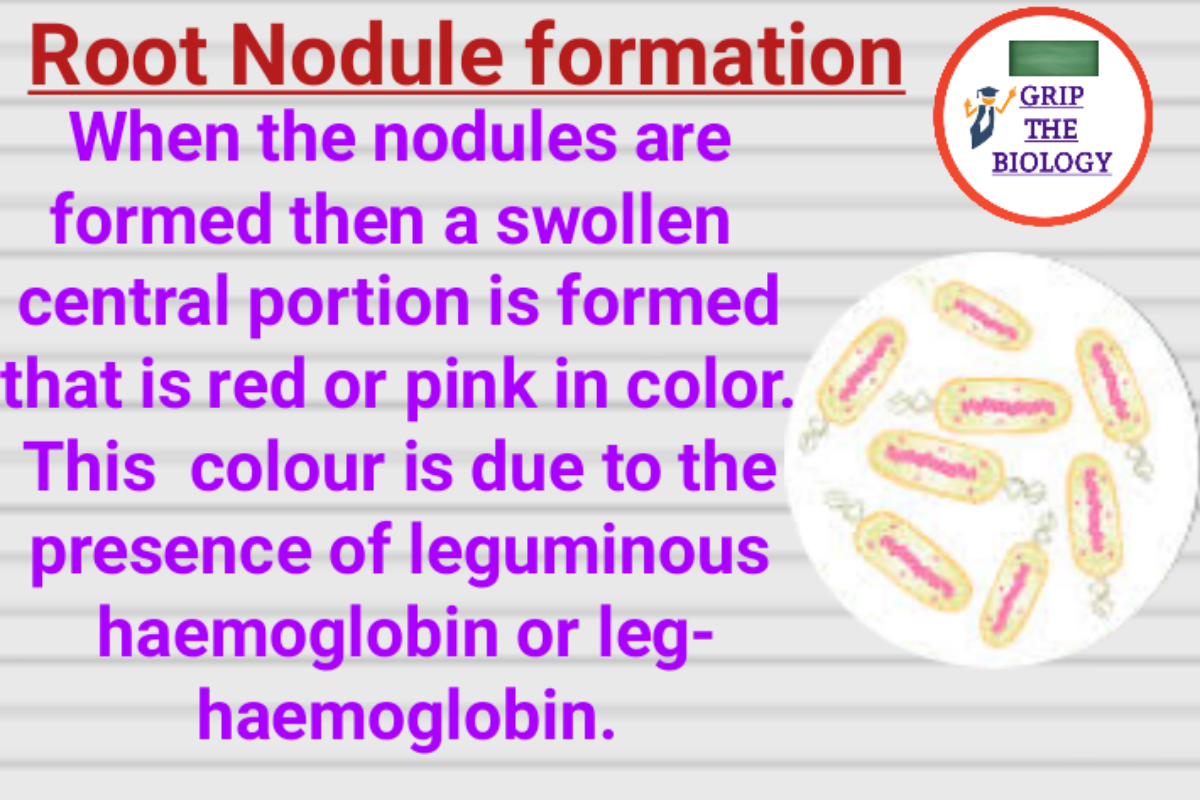

- The nodule acts as a specialized organ that balances this paradox, using a protein called Leg-haemoglobin to scavenge oxygen, keeping it away from the sensitive Nitrogenase enzyme while still allowing the plant tissue to breathe.
- In the world of Biological Nitrogen Fixation (BNF), many bacteria live freely in the soil, Rhizobium and Frankia are the "specialists" that form symbiotic relationships with specific plants to fix nitrogen efficiently.
- Rhizobium is a Gram-negative, rod-shaped bacterium found in the soil. It is famous for its highly specific relationship with Leguminous plants (e.g., Peas, Beans, Soybeans, Clover).
- Each species of Rhizobium has a "lock and key" relationship with its host.
- For example, Rhizobium leguminosarum fixes nitrogen for peas, while Rhizobium meliloti works with alfalfa.
- Inside the plant root, these bacteria transform into irregular, non-motile shapes called Bacteroids, which are the actual site of nitrogen fixation.
| Feature | Rhizobium | Frankia |
|---|---|---|
| Type of Bacteria | Gram-negative Rods | Actinomycetes (Filamentous) |
| Host Plants | Legumes (Peas, Beans, Soybeans) | Non-legumes (Alnus, Casuarina) |
| Nodule Type | Root Nodules (Specific shapes) | Actinorhizal Nodules (Woody) |
| Nitrogenase Site | Bacteroids | Specialized Vesicles |
- While Rhizobium gets all the fame, Frankia is equally important for forest ecosystems.
- It is a genus of nitrogen-fixing bacteria (Actinomycetes) that lives in symbiosis with non-leguminous actinorhizal plants such as Alnus or Alder trees, Casuarina.
- Unlike the organized nodules of legumes, Frankia nodules often look like "coralloid roots" or woody structures.
- Frankia allows trees like Alder to grow in poor, volcanic, or waterlogged soils where nitrogen is scarce, making them vital for Ecological Succession.
- The development of root nodules is a classic example of Signal Transduction and Cell Differentiation. It follows a highly regulated sequence of events:
- The process begins with a "chemical handshake" in the rhizosphere.
- Legume roots secrete specific polyphenolic compounds called Flavonoids.
- Rhizobia recognize these flavonoids and activate their nod genes to produce Nod Factors .
- The binding of Nod Factors to specific receptors on the root hair plasma membrane triggers a signaling cascade.
- Following signal recognition, the root hair undergoes a morphological change. It curls at the tip, creating a structure often called a "Shepherd’s Crook."
- This physical trap encloses the proliferating bacteria.
- The bacteria degrade the local cell wall and enter the root hair. The plant cell membrane invaginates to form a tubular structure called the Infection Thread.
- This thread acts as a dedicated "highway," allowing the bacteria to travel through the epidermis and into the Cortex.
- As the infection thread approaches the inner cortex, plant hormones (specifically Auxins and Cytokinins) trigger rapid cell division.
- This localized hyperplasia creates the Nodule Primordium (the initial bump on the root).
- Once inside the cortical cells, the bacteria are released from the infection thread into the plant cytoplasm, but they remain enclosed in a plant-derived membrane called the Peri bacteroid Membrane.
- The bacteria stop dividing and differentiate into enlarged, nitrogen-fixing organelles called Bacteroids.
- The chemical conversion of N2 to NH3 is a daunting task due to the stability of the nitrogen triple bond.
- The actual fixation is catalyzed by the Nitrogenase Enzyme, which consists of two main proteins:
- Fe-Protein (Dinitrogenase Reductase acts as the electron donor.
- MoFe-Protein (Dinitrogenase) Uses the electrons to reduce N2 into NH3. The Reaction Equation:
- Nitrogenase is irreversibly inactivated by oxygen (O2). However, the plant cells need O2 to perform aerobic respiration to generate the massive amounts of ATP required for the process Therefore plant produces Leg-haemoglobin.
- It acts as an Oxygen Scavenger, binding to O2 and maintaining a low free-oxygen concentration around the bacteroids (anaerobic environment) while still delivering oxygen to the mitochondria for respiration.
- During nitrogen fixation in root nodules, Ammonia is formed by nitrogenase enzymes. And 8 molecules of ATP are produced at production of each Molecule of ammonia.
- At the suitable pH, the ammonia is transformed into ammonium ion. Most of the plants can take nitrate as well as ammonium ions but the ammonium ions are toxic to plants therefore plant cannot accumulate the ammonium ions.
- Moreover the ammonium ions are used to synthesise amino acids in plants. There are two methods by which plant synthesised amino acids from ammonium ions.
- First method is Reductive amination and second one is Transamination.
- In this process, ammonia reacts with alpha-ketoglutaric acid (an intermediate from the to form Glutamic Acid in presence of enzyme Glutamate Dehydrogenase.
- This is the transfer of the amino group from one amino acid to the keto group of another keto acid.
- This allows the plant to synthesize all the other 19 amino acids required for protein synthesis with the enzyme Transaminases.
- To move nitrogen through the [Xylem] without toxicity, the plant converts amino acids into Amides (like Asparagine and Glutamine) or Ureides.
- These contain more nitrogen relative to carbon and are the preferred "transport vehicles" for nitrogen in the plant’s vascular system.
Total Marks: 30 | Time: 1.5 Hours
Section A : Multiple Choice Questions (8 Marks)
1. What is the primary role of Flavonoids in the nitrogen fixation process? A. To catalyze the conversion of N2 to NH3. B. To act as a chemoattractant and signal for Rhizobium bacteria. C. To provide energy for the infection thread formation. D. To scavenge oxygen within the mature nodule.
2. The "Oxygen Paradox" in nitrogen fixation is solved by Leg-haemoglobin because: A. It increases the rate of aerobic respiration in bacteroids. B. It acts as an inhibitor for the Nitrogenase enzyme. C. It maintains a low partial pressure of free O2 while delivering it to mitochondria. D. It converts O2 into H2O directly.
3. Which of the following describes the relationship between Legumes and Rhizobia? A. Parasitism B. Commensalism C. Mutualism D. Interspecific Competition
4..Nod Factors are chemically classified as:
A. Polyphenols
B. Lipochitooligosaccharides
C. Polysaccharides
D. Proteins
5..In the nitrogenase reaction, how many ATP molecules are required to fix ONE molecule of N2? A. 2 ATP B. 8 ATP C. 16 ATP D. 32 ATP
6.The infection thread is formed by the invagination of the: A. Bacterial cell wall B. Root hair plasma membrane C. Cortical cell vacuole D. Xylem vessel
7. Ammonia is toxic to plants; therefore, it is quickly converted into amino acids via: A. Decarboxylation B. Reductive Amination C. Glycolysis D. Photorespiration
8..Which organism is responsible for nitrogen fixation in non-leguminous trees like Alder (Alnus)? A. Rhizobium B. Frankia C. Azotobacter D. Nitrosomonas
Section 2: Short Answer Questions (12 Marks) 1. Briefly explain the "Signal Transduction" pathway between the legume root and the soil bacteria during the initiation of a nodule.
2. Describe the formation and significance of the "Shepherd’s Crook" during root hair curling.
3.. Explain why a plant with high rates of Nitrogen Fixation requires a high rate of Photosynthesis.
4.. Why is it biologically necessary for the Nitrogenase enzyme to operate in an anaerobic environment?
Section 3: Long Answer/Free Response Questions (10 Marks) 1..Trace the development of a root nodule from the initial chemical signaling to the final differentiation of bacteria into bacteroids. Include the role of the infection thread and cortical cell division..
2. Detail the biochemistry of the Nitrogenase complex. Write the balanced chemical equation for nitrogen fixation and explain how the resulting ammonia is assimilated into organic compounds (Amides/Ureides) for transport through the xylem.
🚀 Join the Community! Get access to FREE Worksheets, PDF Notes, and discuss Lessons with experts and fellow students
📝 Test Paper : 2 Root Nodule Formation: Molecular Signaling and Symbiotic Nitrogen Fixation for AP Biology
Total Marks: 30 | Time: 1.5 Hours
Section A : Multiple Choice Questions (8 Marks)
1. If a mutation occurs in the nod genes of Rhizobium, which of the following is the most likely immediate consequence?
A. The bacteria will fail to produce Nod factors.
B. The plant will stop producing Flavonoids.
C. The Nitrogenase enzyme will become hyperactive.
D. Leg-haemoglobin production will increase.
2..The formation of the "Infection Thread" is an example of: A. Bacterial cell wall synthesis. B. Endocytosis-like invagination of the host plasma membrane. C. Passive diffusion of bacteria into the xylem. D. Programmed cell death (Apoptosis) of the root hair.
3. What is the biological significance of the 'Bacteroid' stage?
A. It allows bacteria to survive in aerobic conditions.
B. It is the specialized, non-dividing form that actively fixes nitrogen.
C. It allows the bacteria to infect other neighboring plants.
D. It serves as a storage unit for excess glucose.
4..In the nitrogenase reaction, for every molecule of N2 reduced, how many molecules of H2 gas are produced as a byproduct?
A. 1 H2 B. 2 H2 C. 8 H2 D. No H2 is produced.
5. Which metabolic pathway provides the organic acids (like Malate) that bacteroids use as a carbon source? A. Light Independent Reactions (Calvin Cycle) B. Glycolysis C. Citric Acid Cycle (Kreb's Cycle) D. Electron Transport Chain
6. Leg-haemoglobin is often referred to as an "Oxygen Scavenger." What would happen if Leg-haemoglobin was absent in the nodule? A. Respiration in the nodule would increase. B. Nitrogenase would be permanently denatured by O2. C. The nodule would fix nitrogen at a faster rate. D. The bacteria would become photosynthetic.
7. The process of 'Transamination' is crucial because it: A. Fixes atmospheric nitrogen into ammonia. B. Transfers an amino group to create various amino acids from Glutamic acid. C. Breaks down proteins into ammonia for energy. D. Synthesizes ATP for the nitrogenase complex.
9. Plants that form a symbiosis with Frankia are generally found in:
A. Nitrogen-rich agricultural lands. B. Disturbed or nitrogen-poor forest ecosystems (e.g., Alder trees). C. Deserts with high salinity. D. Aquatic environments with low light.
Section 2: Short Answer Questions (12 Marks)
1. Why can't any soil bacteria form a nodule with any legume? Explain the role of "Signal Specificity."
2. Explain why nitrogen-fixing plants often have higher photosynthetic rates compared to non-fixing plants in the same environment.
3. How does the plant control the amount of oxygen reaching the bacteroids?
4..Explain the difference between 'Reductive Amination' and 'Transamination'.
Section 3: Long Answer/Free Response Questions (10 marks) 1..Discuss how the "Molecular Dialogue" between a legume and Rhizobium reflects co-evolution. Describe the specific signals (Flavonoids and Nod Factors) and how they trigger morphological changes in the host. 2.The Nitrogenase reaction is
A) Explain why such a large amount of ATP is required.
B) Describe how the plant's vascular system (Xylem and Phloem) supports this metabolic demand and the subsequent transport of fixed nitrogen.
📝 Advanced Thinking: Critical Application Questions
📝 Data Analysis: Interpreting Graphs
| Soil Temperature (°C) | Nitrogenase Activity (μmol/hr) | Plant Growth Rate (cm/week) |
|---|---|---|
| 15°C | 12 | 2.1 |
| 20°C | 45 | 5.4 |
| 25°C | 88 | 8.9 |
| 30°C | 92 | 9.2 |
| 35°C | 30 | 4.5 |
| 40°C | 5 | 1.2 |
*Table 1: Quantitative analysis of temperature effects on symbiotic enzyme efficiency.
